Ceiling fan blade replacement project

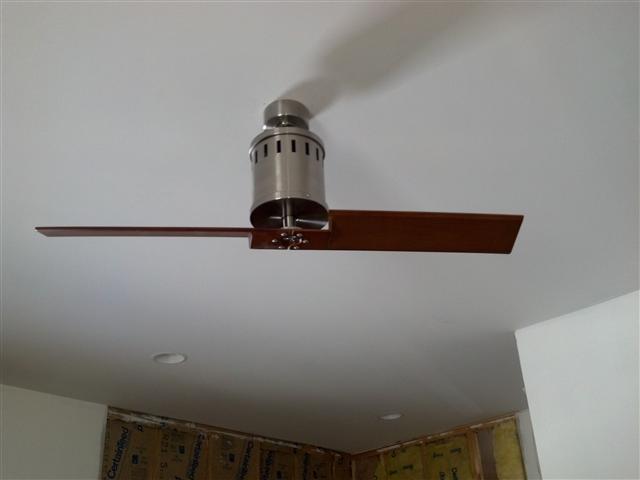

Before: 48" plastic (2) bladed fan with remote, on sale $69



After: 72" airplane propeller style spruce single piece

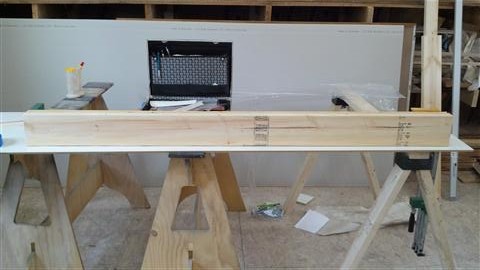

Started with Two 6' 2x6 glued together



I enlarged a photo of an airplane prop and used it to transfer an outline to the blank.

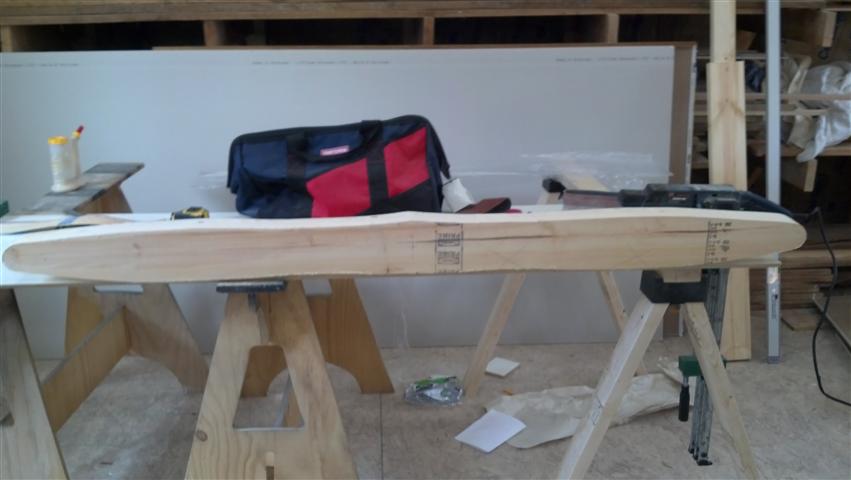

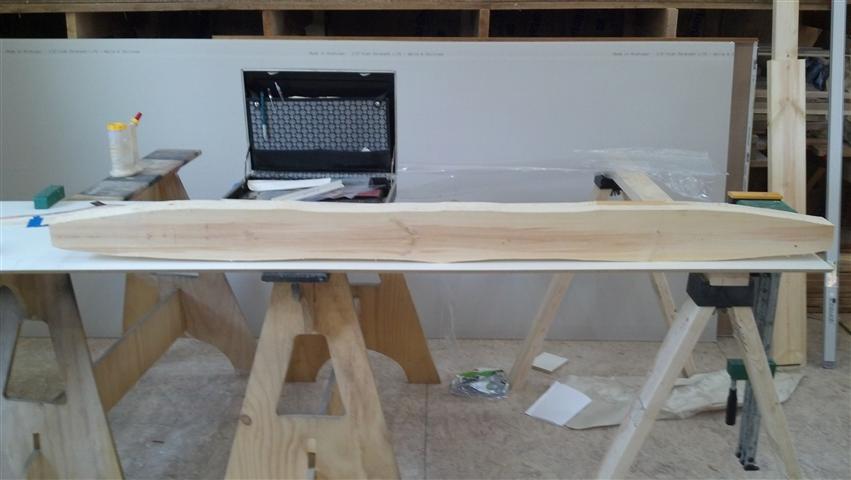

I then cut the outline on a band saw



I then used a belt sander to rough it to the outline

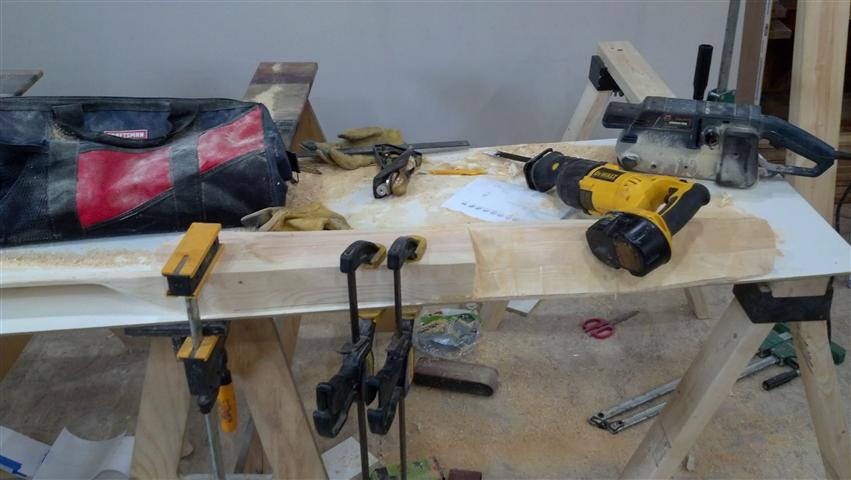

Now cut the angled blade with Reciprocating saw

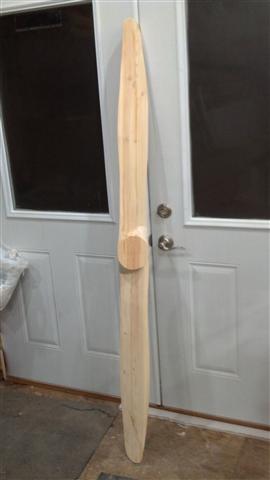

Smoothed the blade with hand plane, belt sander. I balanced the blade as I sanded

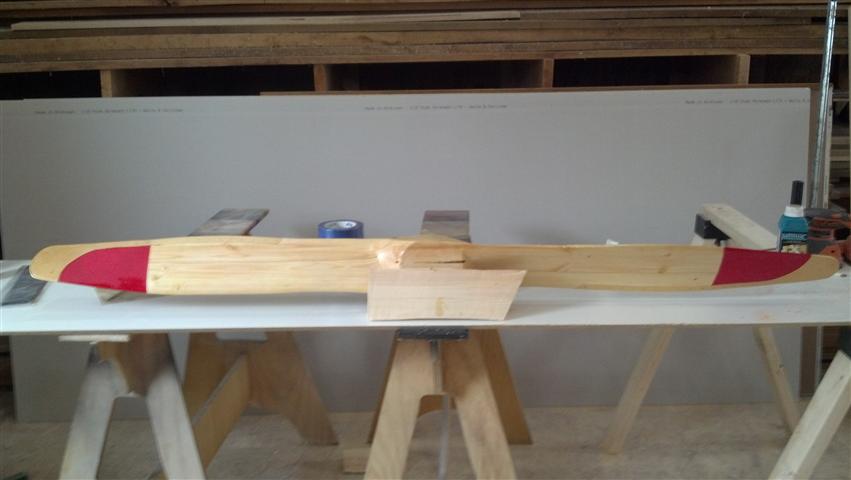

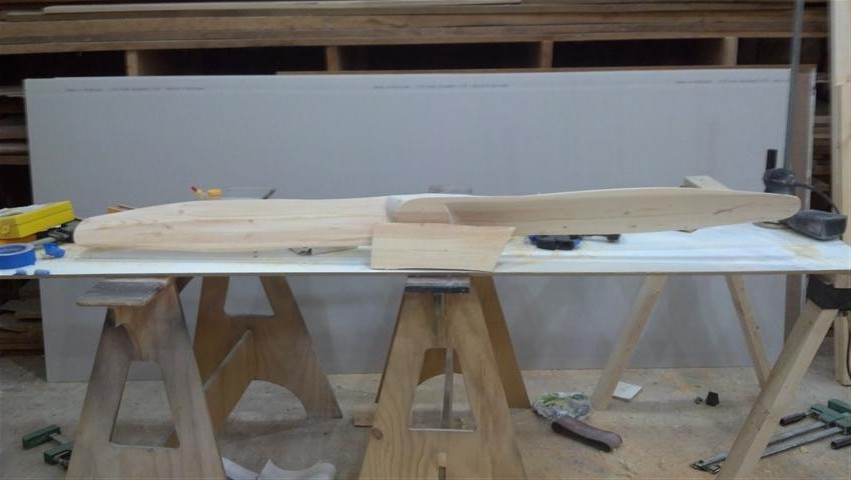

I tapped in brass nails at the center points in the front and the back. I used scrap cut off's left over from the blade angle for fulcrums.

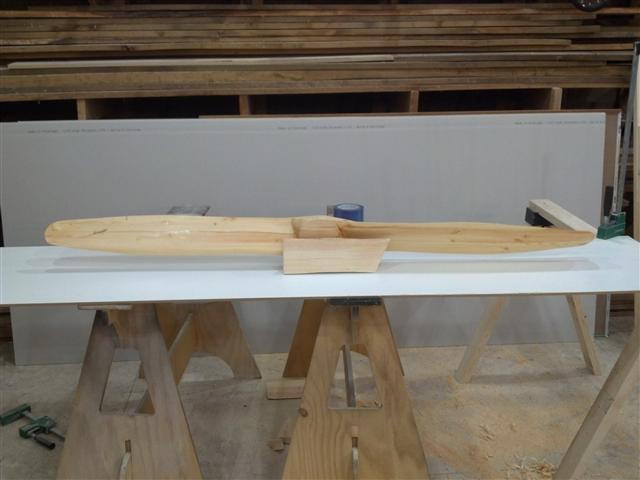

Sealed blade with Shellac checked balance at this stage also

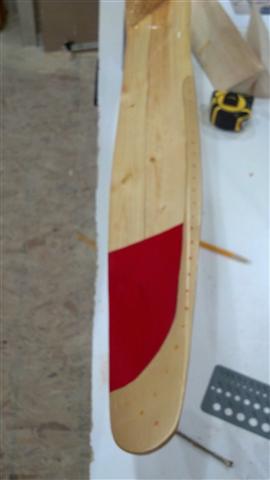

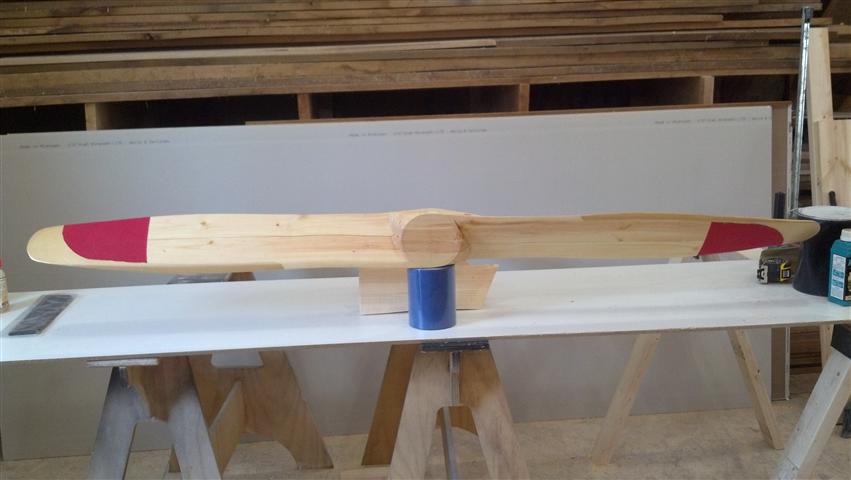

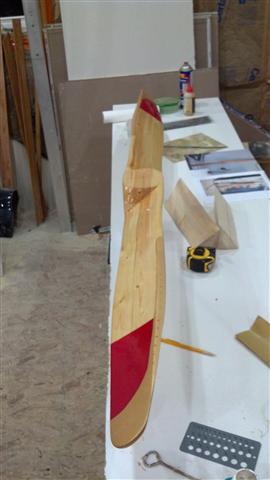

 painted the tips red, gold/brass for protective edge cover



Polyurethane coated Faux rivets added



Checked the balance with the pant on

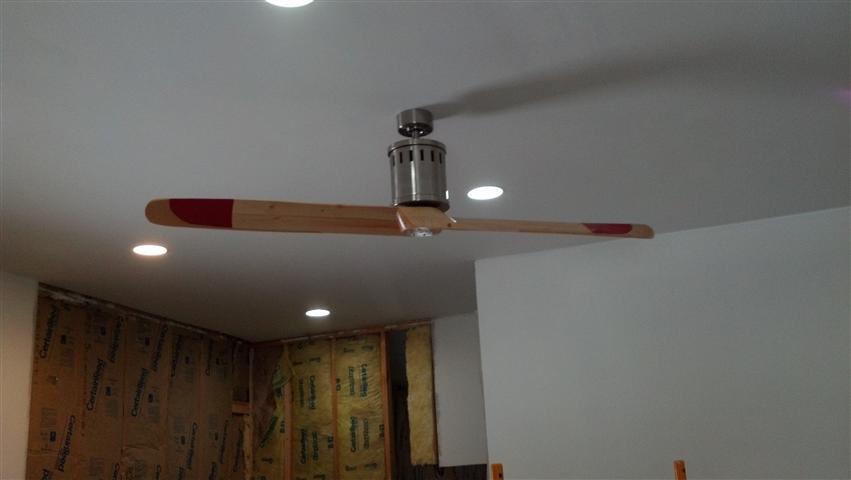

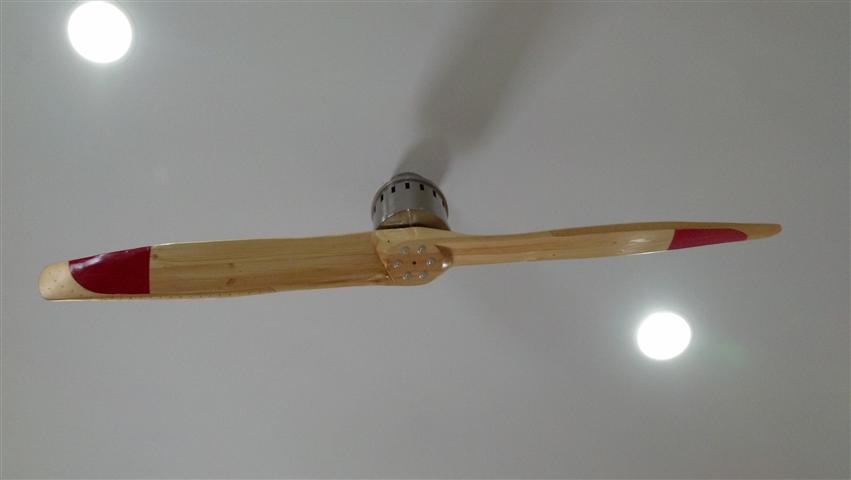

Installed: the balancing was worth it the blade runs wobble free

YouTube video

http://youtu.be/CXFnMR0356c
